Quickstart Guide

Environment

Env	Endpoint
`UAT`	`https://uat-mtms.mspayhub.com/api/v2`
`Prod`	`https://mtms.mspayhub.com/api/v2`

You can get the openapi definition below:

OpenAPI YAML→

Authentication

All endpoints require Bearer Token authentication. Ensure that you include a valid token in the Authorization header of your requests.

GET https://uat-mtms.mspayhub.com/api/v2/current
Authorization: Bearer {jwtToken}

Note: in later version API key will be used as the authentication method. Stay tuned for updates.

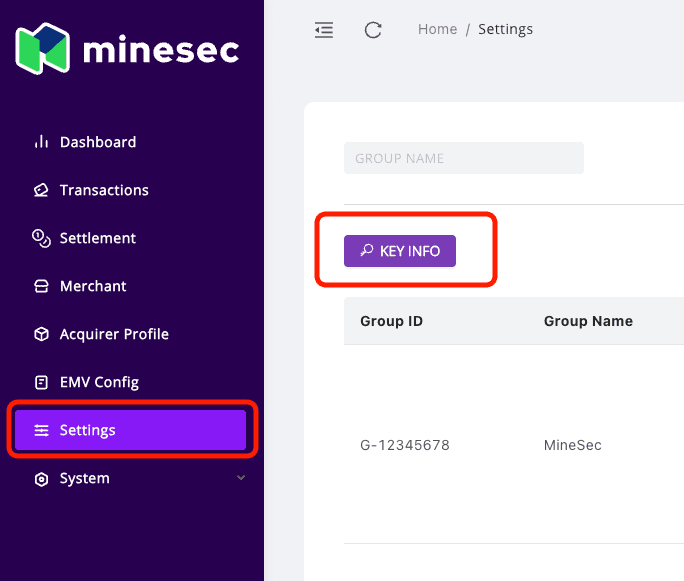

To get the token, you can login to the MMS portal, go to the Settings in the navigation.

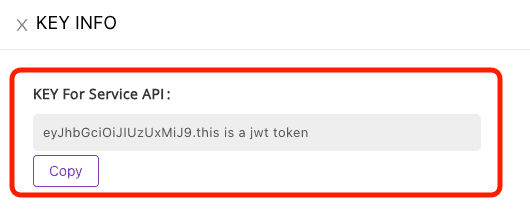

Then opens the KEY INFO and you'll find the token there.

Navigate Settings

Copy Token

Get your group ID

For most of the MMS APIs, you will need to send a groupId, the merchant owner id, alongside with the payload.

You can retrieve the owner information as below:

Example Request - Get Owner Info

POST https://uat-mtms.mspayhub.com/api/v2/current
Authorization: Bearer {jwt}

Example Response - 200 OK

Example Response - Get Owner Info

HTTP/2 200 OK
content-type: application/json;charset=UTF-8

{
  "msg": "SUCCESS",
  "code": 0,
  "data": {
    "groupName": "Sandbox",
    "messageFormat": "[\"MS_ENABLER\"]",
    "groupId": "G-12345678",
    "emailSender": "{}",
    "updatedAt": "2024-07-19T09:27:29+0000"
  }
}

Create merchant

You can create the merchant as below:

Note that you'll need to pass the groupId retrieved from the previous API

Example Request - Create Merchant

POST https://uat-mtms.mspayhub.com/api/v2/mchInfo
Authorization: Bearer {jwt}
Content-Type: application/json

{
  "mchName": "ACME Café",
  "contactEmail": "contact@acme.com",
  "contactName": "John Doe",
  "timeZone": "Asia/Singapore",
  "groupId": "G-12345678",
  "providerReference": "my-reference",
  "mcc": "5814"
}

Example Response - 200 OK

Example Response - Merchant Created

HTTP/2 200 OK
content-type: application/json;charset=UTF-8

{
  "msg": "SUCCESS",
  "code": 0,
  "data": {
    "mchId": "M1721816099",
    "contactEmail": "contact@acme.com",
    "contactName": "John Doe",
    "groupId": "G-12345678",
    "mchName": "ACME Café",
    "timeZone": "Asia/Singapore",
    "mcc": "5814",
    "uuid": "M1721816099",
    "createdAt": "2024-07-24T10:14:59+0000",
    "receiptLogo": "https://d1s8odmojpby5x.cloudfront.net/logo-merchant-images.png",
    "providerReference": "my-reference",
    "state": 1,
    "id": "M1721816099",
    "supportedPayments": [
      "UNKNOWN"
    ],
    "updatedAt": "2024-07-24T10:14:59+0000"
  }
}

Create activation code

Once the merchant is created, you can provision the activation code for the SoftPOS app as below

Note that you'll need to pass the mchId retrieved from the previous API

For the MID/ TID binding, you can pass it in the request methodList

Example Request - Create Activation Code

POST https://uat-mtms.mspayhub.com/api/v2/device
Authorization: Bearer {jwt}
Content-Type: application/json

{
  "deviceType": "COTS",
  "activateCodeAlias": "Code name",
  "deviceAdmin": "passcode",
  "methodList": "{\"all\":{\"tid\":\"12345678\",\"mid\":\"1234567890123\"}}",
  "mchId": "M1721871518"
}

Example Response - 200 OK

Example Response - Merchant Created

HTTP/2 200 OK
content-type: application/json;charset=UTF-8

{
  "msg": "SUCCESS",
  "code": 0,
  "data": {
    "id": "CD-017241045101",
    "activationCode": "017241045101"
  }
}

From the response, you can use the activationCode for the login on SoftPOS app!
